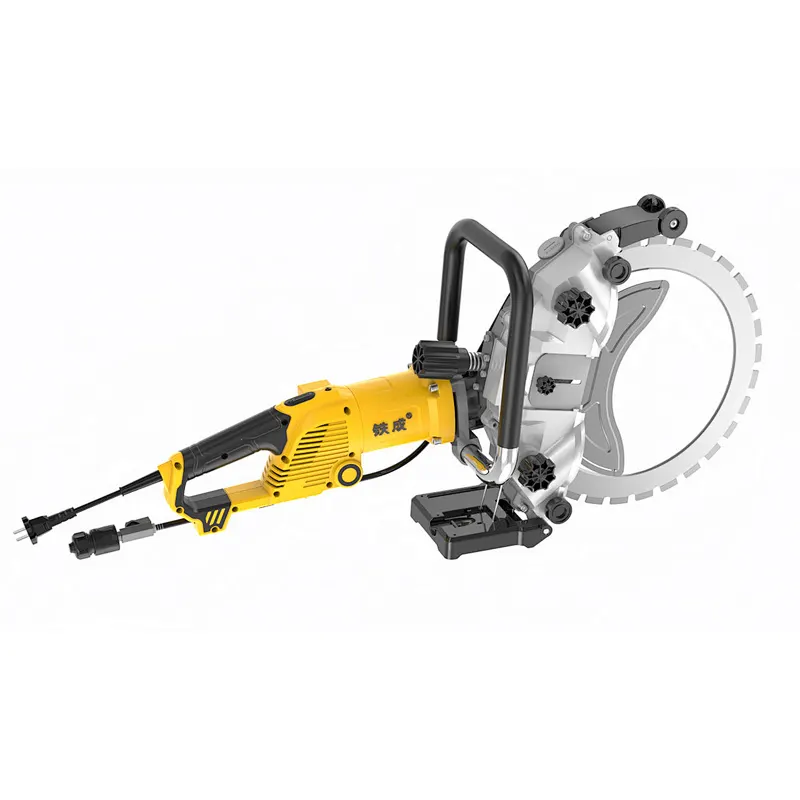

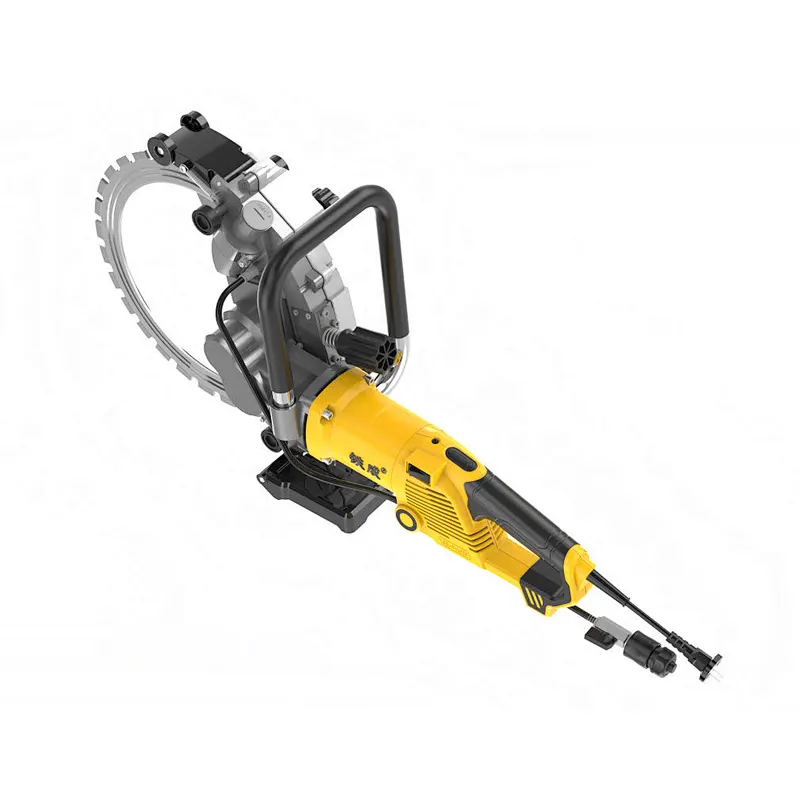

When you need to quickly and effectively cut walls, AC8300/AC8400/AC8500/AC8600 high frequency Ring Saw is the answer. Brushless electric motor have significant improvements in efficiency and power consumption compared to traditional motors.The AC8400/AC8500 Oil-free brushless concrete saw is a concrete wall cutting machine with 5000w(6.7hp) brushless motor that can cut two meters brick wall in five minutes. The maximum cutting depth of a 400mm/500mm blade can reach 29/39 centimeters, and if carefully compared, it is even higher than the cutting depth of many construction power tools.
TCBL manufacturer Ring saw is mainly used in construction power tools to cut a window on the wall or cut the ground.
AC8300/AC8400/AC8500/AC8600

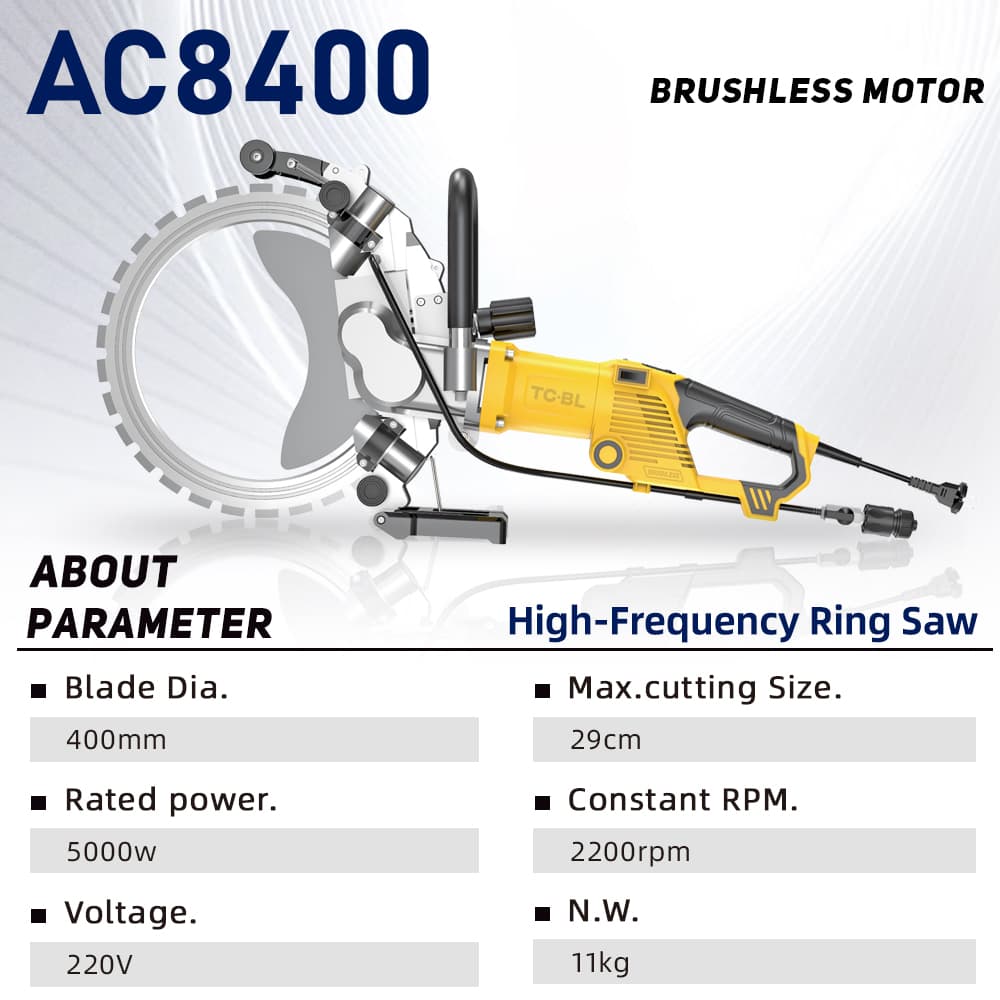

Product Specification：
AC8400/AC8500 Ring sawing
Rated Power: 5000w(6.7hp)
Constant RPM: 2800rpm/2200rpm/1800rpm/1500rpm
Blade Diameter:300mm/400mm/500mm/600mm
Max.cutting Size:160mm/290mm/390mm/490mm
N.W. 11kg(24lbs)
Voltage: 220V
Plug: European standard
The core technological advantages of our High Frequency Brushless Ring saw:
Multiple advantages meet your picky requirements
1. Permanent magnet brushless motors have a batter performance.
2. Big rated power 5000W(6.7hp),higher cutting efficiency.
3. Max cutting 16cm/29cm/39cm/49cm, deeper than other ring saw in the industry.
4. Water mist nozzle prevents dust from spreading everywhere
5. Double protection makes cutting safer.
6. Free maintenance, oil free and brushless motors are maintenance free, economical and worry free
7. With a weight of 12kg(26.5lbs), Reduces fatigue, Improves efficiency, and can even be operated with one hand.
8. The auxiliary casters can make the cutting very smooth, and any cutting can be very straight.
Compared with traditional brush motor, the advantages of our brushless motor. Why choose our brushless electric motor ring sawing?
1.High efficiency,the rotor of a permanent magnet motor is made of rare earth permanent magnets, which have no losses during operation and higher efficiency.
2.Lower wear and tear，our brushless motors have a lifespan 5-8 times longer than traditional motors.
3.Lower energy consumption,the conversion rate of electric energy is high, saving energy by 10-25% compared with traditional motor.
4.Maintenance free,the carbon brush motor needs to be replaced, and our brushless motor requires almost no maintenance on a daily basis because it does not have carbon brushes.
5.Lower interference,the permanent magnet motor has no brush, no collector ring and no spark in operation, so it is not afraid of wireless interference and greatly improves the service performance.
6.Lower friction,brushless motors without brushes greatly reduce friction during operation, resulting in smooth operation and significantly lower noise levels
Main application:
Apply to construction power tools and all kinds of wall,concrete wall,red brick wall,light weight brick. Reinforced concrete,Granite,Stone,cement pipeline and so on .
About packing:
we have BMC BOX for you to select. After using our BMC BOX, carrying the machines will become very convenient, and you can carry it anytime, anywhere. And our BMC BOX is designed with sliding wheel, so you can take our ring saw like carrying a suitcase. Providing you with great convenience in the field of Construction and interior decoration.
FAQ（common problems and questions）
Product Questions
- Q: 1. What is the main usage scenarios of the ring saw?
- A: The ring saw has versatile usage scenarios that can be applied to all kinds of walls, concrete, red brick, lightweight brick, ground, cement pipes, and so on. If you want to know more about the usage scenarios of our ring saw, please do not hesitate to contact us.
- Q: 2. How is the product made? Where do these materials come from?
- A: Our factory is based in Yongkang China, and we independently develop and produce the ring saw using high-quality materials. Over 80% of the machine accessories are produced in-house, whilst a few accessories are bought from other factories.
- Q: 3. How are the after-sales and warranty services ?
- A: Our brushless electric motor ring saw requires minimal maintenance on a daily basis since it doesn't have carbon brushes, so the maintenance is almost free, and its lifespan much longer than other motors. Additionally, if you purchase a sufficient quantity of machines from us, we are willing to send you a new motor if the motor is damaged during the course of normal use within one year.
- Q: 4. Does this machine have vulnerable parts? Can I purchase accessories locally to install them, or do I need to purchase accessories from somewhere？
- A: Like any other machine, our ring saw has some vulnerable parts that we produce and sell as accessories. You can purchase these accessories from us, or if you prefer, you can also purchase them locally
Transportation and payment issues
- Q: 1. What are the transportation options and how many days should i receive the goods?
- A: We offer transportation options depending on your preference. If you have a transportation forwarder in China, we can ship to them. Alternatively, we have our own shipping agent, and we typically offer two options: shipping by sea or by air. Delivery times may vary according to your location, so please contact us to learn more.
- Q: 2. How should I pay for the goods after i confirm the order?
- A: After you confirm your order, you can pay us through our overseas RMB or USD accounts. Rest assured that your payment details will be kept secure and confidential.
- Q: 3.What is the payment terms in Common？
- A: Our preferred payment term is T/T, although the exact terms may vary depending on the total amount. If the amount is small, we generally require full payment upfront. However, for bigger amounts, we require a 30% deposit and the balance is payable before delivery.
